PG可见性判断

PG可见性判断是怎么进行的？

前言

前备知识：MVCC && 事务隔离级别

场景：heapgetpage函数中，为了获取一个块内的所有可见tuple，遍历tuple时都要对它的可见性进行判断，该函数为HeapTupleSatisfiesMVCC。

事务具有xid，PG还有clog记录事务是否提交，PG还维护全局活跃的事务数组。

• xmin：当前活跃事务最小的xid
• xmax：当前活跃事务最大的xid+1

回到事务读元组的场景，如果元组的xid<xmin，那么这条元组可见；如果元组的xid>xmax，那么这条元组不可见。但是PG的元组头中有t_xmin、t_max等字段，这些字段怎么一起控制元组可见性呢？

CLog

PostgreSQL在提交日志（Commit Log, clog）中保存事务的状态。提交日志（通常称为clog）分配于共享内存中，并用于事务处理过程的全过程。

#define TRANSACTION_STATUS_IN_PROGRESS 0x00
#define TRANSACTION_STATUS_COMMITTED 0x01
#define TRANSACTION_STATUS_ABORTED 0x02
#define TRANSACTION_STATUS_SUB_COMMITTED 0x03

四种事务状态，其中sub_committed与子事务相关，暂时略过。

提交日志（下称clog）在逻辑上是一个数组，由共享内存中一系列8KB页面组成，以页为单位。数组下标是事务ID，参考TransactionIdGetStatus函数；数组内容是事务状态，每个事务状态占用2bit。一个页面8K，可以存储8K*8/2=32K个事务状态。

Clog buffer大小为Min(128, Max(4, NBuffers / 512))，初始化函数为CLOGShmemInit。启动时会从pg_xact读取事务状态加载到内存。

Hint Bits

为了避免多次访问clog造成的性能瓶颈，PG在元组头部设立了提示字段。具体而言，在元组的t_informask字段中设立如下的标记：

#define HEAP_XMIN_COMMITTED 0x0100 /* t_xmin committed */
#define HEAP_XMIN_INVALID 0x0200 /* t_xmin invalid/aborted */
#define HEAP_XMIN_FROZEN (HEAP_XMIN_COMMITTED|HEAP_XMIN_INVALID)
#define HEAP_XMAX_COMMITTED 0x0400 /* t_xmax committed */
#define HEAP_XMAX_INVALID 0x0800 /* t_xmax invalid/aborted */
#define HEAP_XMAX_IS_MULTI 0x1000 /* t_xmax is a MultiXactId */

访问元组头部就可以知道元组对应的t_xmin、t_max事务状态，不需要再次访问clog。

HeapTupleSatisfiesMVCC

可见情况：

• 在创建快照时所有已提交的事务
• 本事务之前执行的命令

不可见情况：

• 在创建快照时尚活跃的事务
• 在创建快照后启动的事务
• 当前命令造成的变化（changes made by the current command）

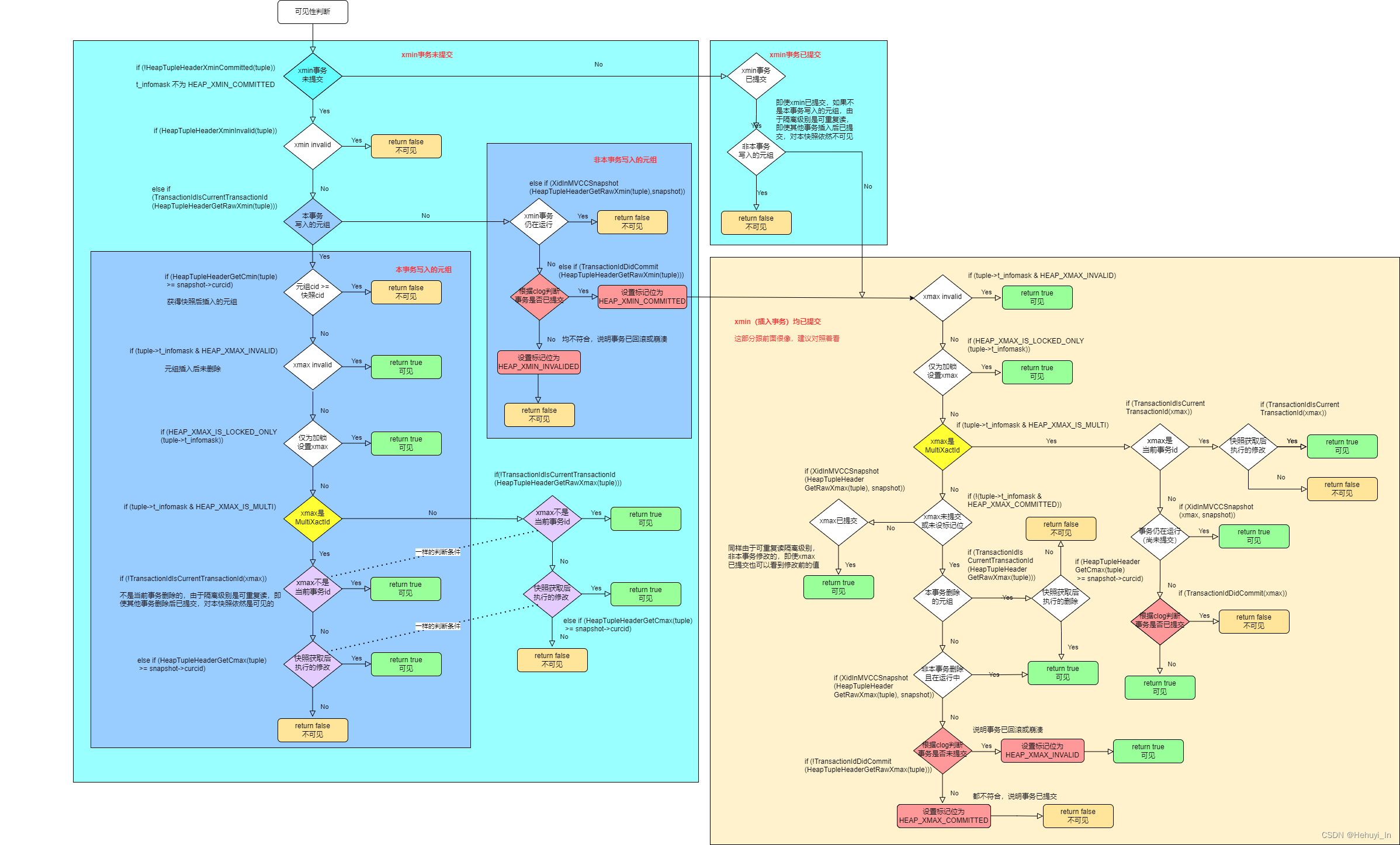

这个函数比较复杂，参考博客了解详情。下面是归纳的一份逻辑流程：大体是先判断xmin再判断xmax，根据xmin的状态分三条线走。

/* t_xmin status = ABORTED */
Rule 1: IF t_xmin status is 'ABORTED' THEN
            RETURN 'Invisible'
        END IF
/* t_xmin status = IN_PROGRESS */
        IF t_xmin status is 'IN_PROGRESS' THEN
            IF t_xmin = current_txid THEN
Rule 2:         IF t_xmax = INVALID THEN
                    RETURN 'Visible'
Rule 3:         ELSE  /* this tuple has been deleted or updated by the current transaction itself. */
                    RETURN 'Invisible'
                END IF
Rule 4:     ELSE   /* t_xmin ≠ current_txid */
                RETURN 'Invisible'
            END IF
         END IF
/* t_xmin status = COMMITTED */
         IF t_xmin status is 'COMMITTED' THEN
Rule 5:     IF t_xmin is active in the obtained transaction snapshot THEN
                RETURN 'Invisible'
Rule 6:     ELSE IF t_xmax = INVALID OR status of t_xmax is 'ABORTED' THEN
                RETURN 'Visible'
            ELSE IF t_xmax status is 'IN_PROGRESS' THEN
Rule 7:         IF t_xmax =  current_txid THEN
                    RETURN 'Invisible'
Rule 8:         ELSE  /* t_xmax ≠ current_txid */
                    RETURN 'Visible'
                END IF
            ELSE IF t_xmax status is 'COMMITTED' THEN
Rule 9:         IF t_xmax is active in the obtained transaction snapshot THEN
                    RETURN 'Visible'
Rule 10:        ELSE
                    RETURN 'Invisible'
                END IF
            END IF
        END IF

SnapShot

快照是如何产生的呢？主要看GetTransactionSnapshot这个函数，它的主要逻辑是：

• 根据FirstsnapshotSet判断是否是第一次生成快照
• 根据隔离级别决定要生成的快照
• 通过GetSnapshotData这个函数生成具体的快照

FirstsnapshotSet并不是强依赖于事务的变量，只是snapmgr.c的一个全局变量。根据不同隔离级别，这个变量设置也会有不同的时机。

初始值为false，生成snapshot后设置为true。如果隔离级别是read-commit，则当sql执行完成后会将FirstSnapshotSet设为false，如果是repeatable-read只有在事务结束后才会将FirstSnapshotSet设为false。通过监视FirstSnapshotSet变量的变化（添加数据断点&FirstSnapshotSet）可以观察语句结束和事务提交的情况。

Snapshot GetTransactionSnapshot(void)
{
	/*
	 * Return historic snapshot if doing logical decoding. We'll never need a
	 * non-historic transaction snapshot in this (sub-)transaction, so there's
	 * no need to be careful to set one up for later calls to
	 * GetTransactionSnapshot().
	 */
	if (HistoricSnapshotActive())
	{
		Assert(!FirstSnapshotSet);
		return HistoricSnapshot;
	}

	/* First call in transaction? */
	if (!FirstSnapshotSet)
	{
		/*
		 * Don't allow catalog snapshot to be older than xact snapshot.  Must
		 * do this first to allow the empty-heap Assert to succeed.
		 */
		InvalidateCatalogSnapshot();

		Assert(pairingheap_is_empty(&RegisteredSnapshots));
		Assert(FirstXactSnapshot == NULL);

		if (IsInParallelMode())
			elog(ERROR,
				 "cannot take query snapshot during a parallel operation");

		/*
		 * In transaction-snapshot mode, the first snapshot must live until
		 * end of xact regardless of what the caller does with it, so we must
		 * make a copy of it rather than returning CurrentSnapshotData
		 * directly.  Furthermore, if we're running in serializable mode,
		 * predicate.c needs to wrap the snapshot fetch in its own processing.
		 */
		if (IsolationUsesXactSnapshot())
		{
			/* First, create the snapshot in CurrentSnapshotData */
			if (IsolationIsSerializable())
				CurrentSnapshot = GetSerializableTransactionSnapshot(&CurrentSnapshotData);
			else
				CurrentSnapshot = GetSnapshotData(&CurrentSnapshotData);
			/* Make a saved copy */
			CurrentSnapshot = CopySnapshot(CurrentSnapshot);
			FirstXactSnapshot = CurrentSnapshot;
			/* Mark it as "registered" in FirstXactSnapshot */
			FirstXactSnapshot->regd_count++;
			pairingheap_add(&RegisteredSnapshots, &FirstXactSnapshot->ph_node);
		}
		else
			CurrentSnapshot = GetSnapshotData(&CurrentSnapshotData);

		FirstSnapshotSet = true;
		return CurrentSnapshot;
	}

	if (IsolationUsesXactSnapshot())
		return CurrentSnapshot;

	/* Don't allow catalog snapshot to be older than xact snapshot. */
	InvalidateCatalogSnapshot();

	CurrentSnapshot = GetSnapshotData(&CurrentSnapshotData);

	return CurrentSnapshot;
}

参考

https://blog.csdn.net/Hehuyi_In/article/details/127344822

https://blog.csdn.net/obvious__/article/details/120710977

https://pg-internal.vonng.com/
